Implement
200 - Row Units( Сошники )

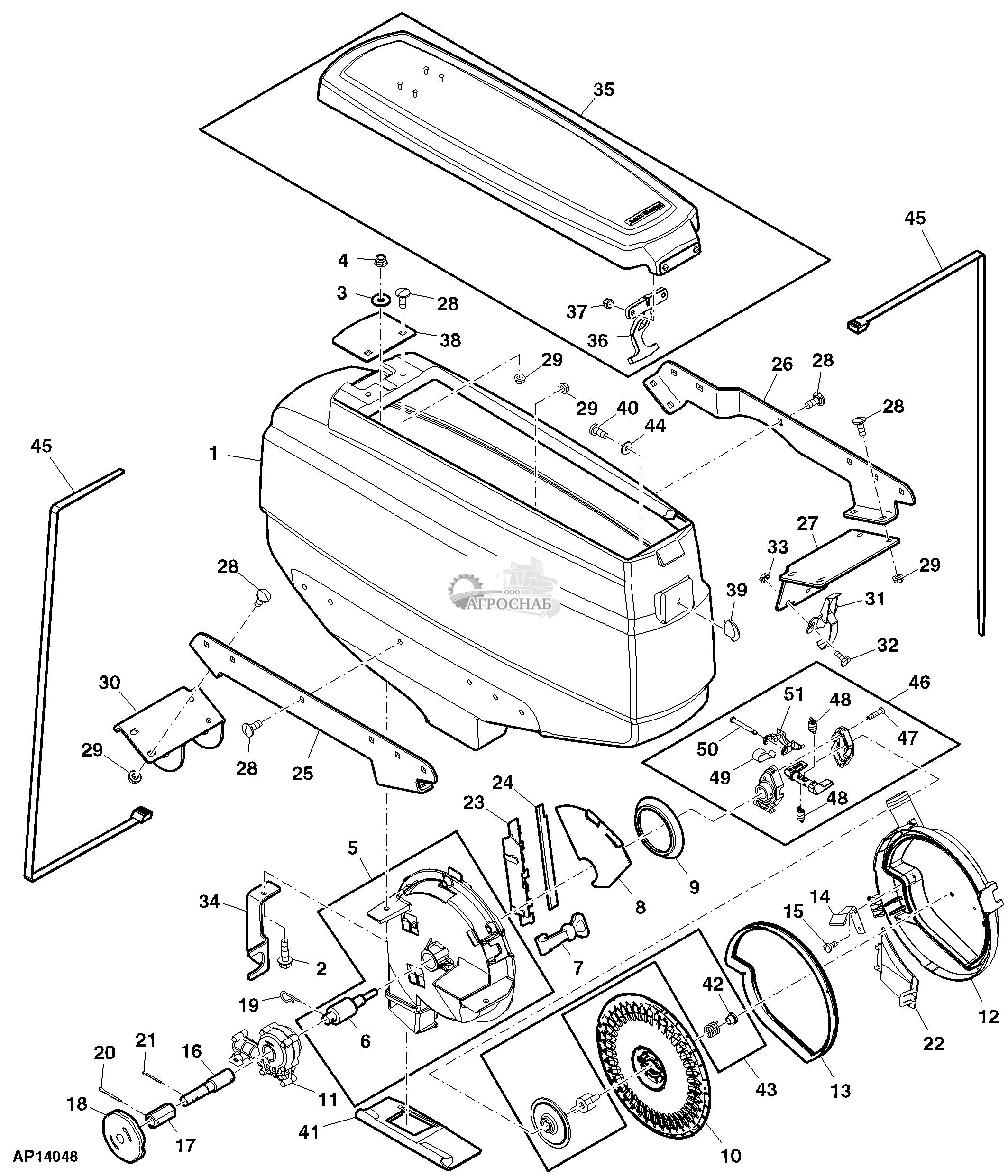

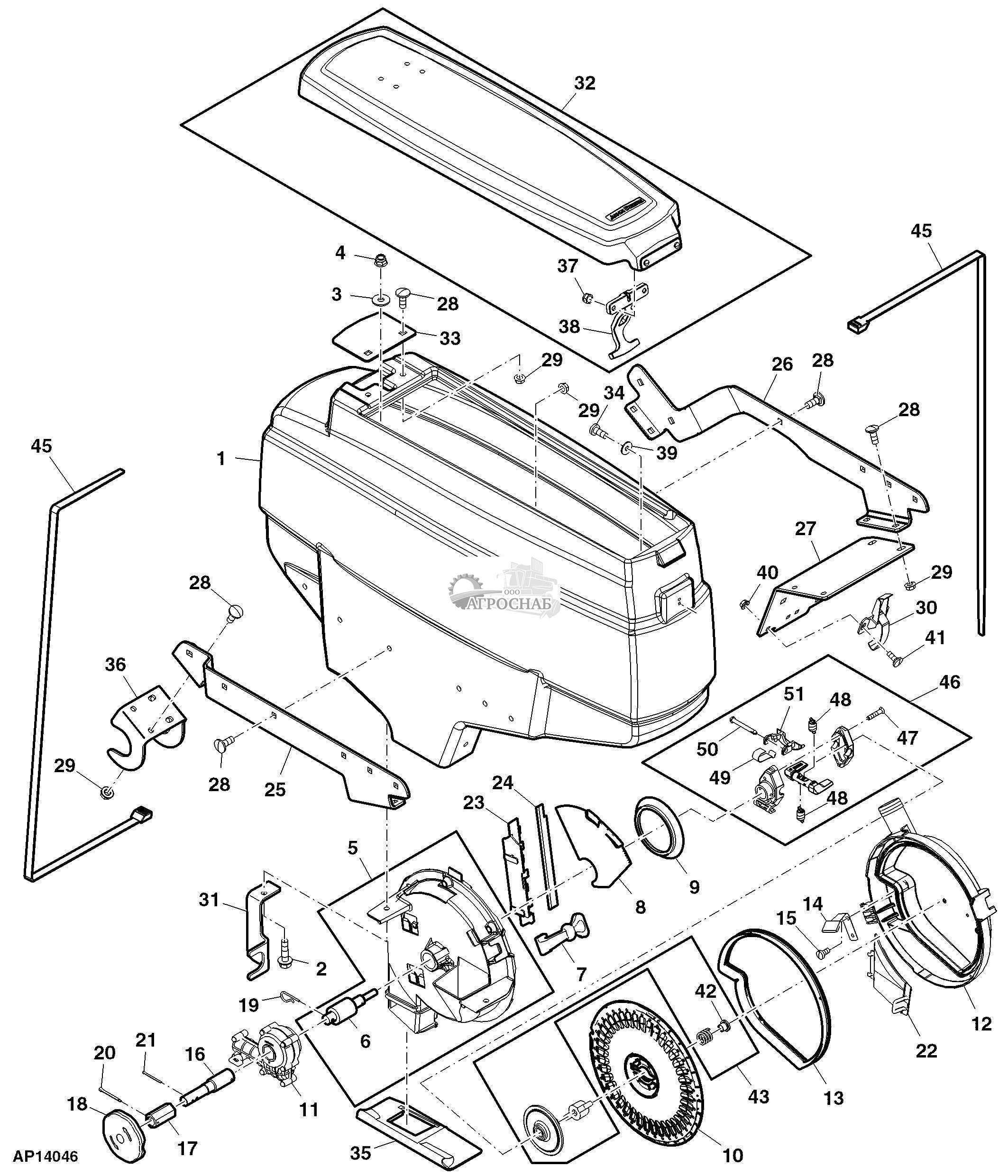

Hopper Assembly, LH(Сборка бункера БС)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | A90879 | Hopper | 1 | Hopper LH | ||
| 2 | 19M7868 | Screw | 2 | M8 X 30 | ||
| 3 | 24M7207 | Washer | 2 | 8.400 X 24 X 2 mm | ||
| 4 | 14M7396 | Lock Nut | 2 | M8 | ||
| 5 | AA37129 | Housing | 1 | |||
| 6 | AA35658 | Bearing | 1 | |||
| 7 | A44990 | Latch | 1 | |||
| 8 | A51838 | Isolator | 1 | |||
| 9 | A46670 | Seal | 1 | |||
| 10 | A52391 | Seed Plate | 1 | PROMAX 40 Flat Disk (2 Per Carton) | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| A43215 | Seed Plate | 1 | 30 Cells; Small Corn (2 Per Carton) | |||
| A50617 | Seed Plate | 1 | 30 Cells; Standard Corn (2 Per Carton) | |||
| A52390 | Seed Plate | 1 | 40 Cells; Sweet Corn, Small (2 Per Carton) | |||
| A42586 | Seed Plate | 1 | 108 Cells; Soybean (2 Per Carton) | |||
| A52802 | Seed Plate | 1 | 90 Cells; High Rate Sorghum | |||
| A43066 | Seed Plate | 1 | Seed Disk, Sorghum | |||
| 11 | AA54374 | Housing | 1 | |||
| 12 | AA73562 | Meter | 1 | |||
| 13 | A74191 | Seal | 1 | |||
| 14 | AA37076 | Scraper | 1 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 15 | 21M7494 | Screw | 1 | M3 X 6 | ||
| 16 | A90943 | Shaft | 1 | |||
| 17 | A76252 | Sleeve | 1 | |||
| 18 | A75289 | Handle | 1 | |||
| 19 | A51643 | Spring Locking Pin | 2 | |||
| 20 | A81412 | Cotter Pin | 1 | |||
| 21 | 11M7082 | Cotter Pin | 1 | 2.500 X 25 mm | ||
| 22 | A85825 | Cover | 1 | |||
| 23 | A51837 | Insert | 1 | |||
| 24 | AA32868 | Brush | 1 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| AA37206 | Brush | 1 | Peanut, Edible Bean | |||
| 25 | A90882 | Bracket | 1 | Hopper Support LH | ||
| 26 | A90883 | Bracket | 1 | Hopper Support RH | ||
| 27 | A90884 | Bracket | 1 | LH Hopper Rear | ||
| 28 | 03M7184 | Bolt | 23 | M8 X 20 | ||
| 29 | E63525 | Nut | 23 | |||
| 30 | AA76481 | Frame | 1 | Front Hopper Hooks LH | ||
| 31 | AA22119 | Latch | 2 | |||
| 32 | 03M7221 | Bolt | 4 | M6 X 16 | ||
| 33 | E63524 | Nut | 4 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 34 | A90942 | Stop | 1 | |||
| 35 | AA76489 | Frame | 1 | |||
| 36 | A72081 | Strap | 1 | |||
| 37 | 14M7265 | Lock Nut | 2 | M5 | ||
| 38 | A90990 | Bracket | 1 | |||
| 39 | A71870 | Retainer | 1 | |||
| 40 | 21M7265 | Screw | 1 | M5 X 12 | ||
| 41 | A90464 | Cover | 1 | |||
| 42 | A44913 | Bushing | 1 | Spring Retainer | ||
| 43 | AA89297 | Meter | 1 | SUB FOR AA68743 | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 44 | 24M7138 | Washer | 1 | 5.300 X 15 X 1 mm | ||
| 45 | A87249 | Tie Band | 2 | |||
| 46 | AA38393 | Drive | 1 | |||
| 47 | A52916 | Screw | 2 | |||
| 48 | A68169 | Extension Spring | 2 | |||
| 49 | A70089 | Spring | 1 | |||
| 50 | H137874 | Pin Fastener | 1 | |||
| 51 | H137951 | Lock | 1 |
Hopper Assembly, RH(Бункер в сборе)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | A90880 | Hopper | 1 | Hopper RH | ||
| 2 | 19M7868 | Screw | 2 | M8 X 30 | ||
| 3 | 24M7207 | Washer | 2 | 8.400 X 24 X 2 mm | ||
| 4 | 14M7396 | Lock Nut | 2 | M8 | ||
| 5 | AA37129 | Housing | 1 | |||
| 6 | AA35658 | Bearing | 1 | |||
| 7 | A44990 | Latch | 1 | |||
| 8 | A51838 | Isolator | 1 | |||
| 9 | A46670 | Seal | 1 | |||
| 10 | A52391 | Seed Plate | 1 | Promax 40 Flat Disk (2 Per Carton) | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| A43215 | Seed Plate | 1 | 30 Cells; Small Corn (2 Per Carton) | |||
| A50617 | Seed Plate | 1 | 30 Cells; Standard Corn (2 Per Carton) | |||
| A52390 | Seed Plate | 1 | 40 Cells; Sweet Corn, Small (2 Per Carton) | |||
| A42586 | Seed Plate | 1 | 108 Cells; Soybean (2 Per Carton) | |||
| A52802 | Seed Plate | 1 | 90 Cells; High Rate Sorghum | |||
| A43066 | Seed Plate | 1 | Seed Disk, Sorghum | |||
| 11 | AA54374 | Housing | 1 | |||
| 12 | AA73562 | Meter | 1 | |||
| 13 | A74191 | Seal | 1 | |||
| 14 | AA37076 | Scraper | 1 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 15 | 21M7494 | Screw | 1 | M3 X 6 | ||
| 16 | A90943 | Shaft | 1 | |||
| 17 | A76252 | Sleeve | 1 | |||
| 18 | A75289 | Handle | 1 | |||
| 19 | A51643 | Spring Locking Pin | 2 | |||
| 20 | A81412 | Cotter Pin | 1 | |||
| 21 | 11M7082 | Cotter Pin | 1 | 2.500 X 25 mm | ||
| 22 | A85825 | Cover | 1 | |||
| 23 | A51837 | Insert | 1 | |||
| 24 | AA32868 | Brush | 1 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| AA37206 | Brush | 1 | Peanut, Edible Bean | |||
| 25 | A91161 | Bracket | 1 | Hopper Support LH | ||
| 26 | A91491 | Bracket | 1 | Hopper Support RH | ||
| 27 | A90885 | Bracket | 1 | RH Hopper Rear | ||
| 28 | 03M7184 | Bolt | 23 | M8 X 20 | ||
| 29 | E63525 | Nut | 23 | |||
| 30 | AA22119 | Latch | 2 | |||
| 31 | A90942 | Stop | 1 | |||
| 32 | AA76489 | Frame | 1 | |||
| 33 | A90990 | Bracket | 1 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 34 | 21M7265 | Screw | 1 | M5 X 12 | ||
| 35 | A90464 | Cover | 1 | |||
| 36 | A90913 | Bracket | 1 | |||
| 37 | 14M7265 | Lock Nut | 2 | M5 | ||
| 38 | A72081 | Strap | 1 | |||
| 39 | 24M7138 | Washer | 1 | 5.300 X 15 X 1 mm | ||
| 40 | 03M7221 | Bolt | 4 | M6 X 16 | ||
| 41 | E63524 | Nut | 4 | |||
| 42 | A44913 | Bushing | 1 | Spring Retainer | ||
| 43 | AA89297 | Meter | 1 | SUB FOR AA68743 | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 44 | A71870 | Retainer | 1 | |||
| 45 | A87249 | Tie Band | 2 | |||
| 46 | AA38393 | Drive | 1 | |||
| 47 | A52916 | Screw | 2 | |||
| 48 | A68169 | Extension Spring | 2 | |||
| 49 | A70089 | Spring | 1 | |||
| 50 | H137874 | Pin Fastener | 1 | |||
| 51 | H137951 | Lock | 1 |

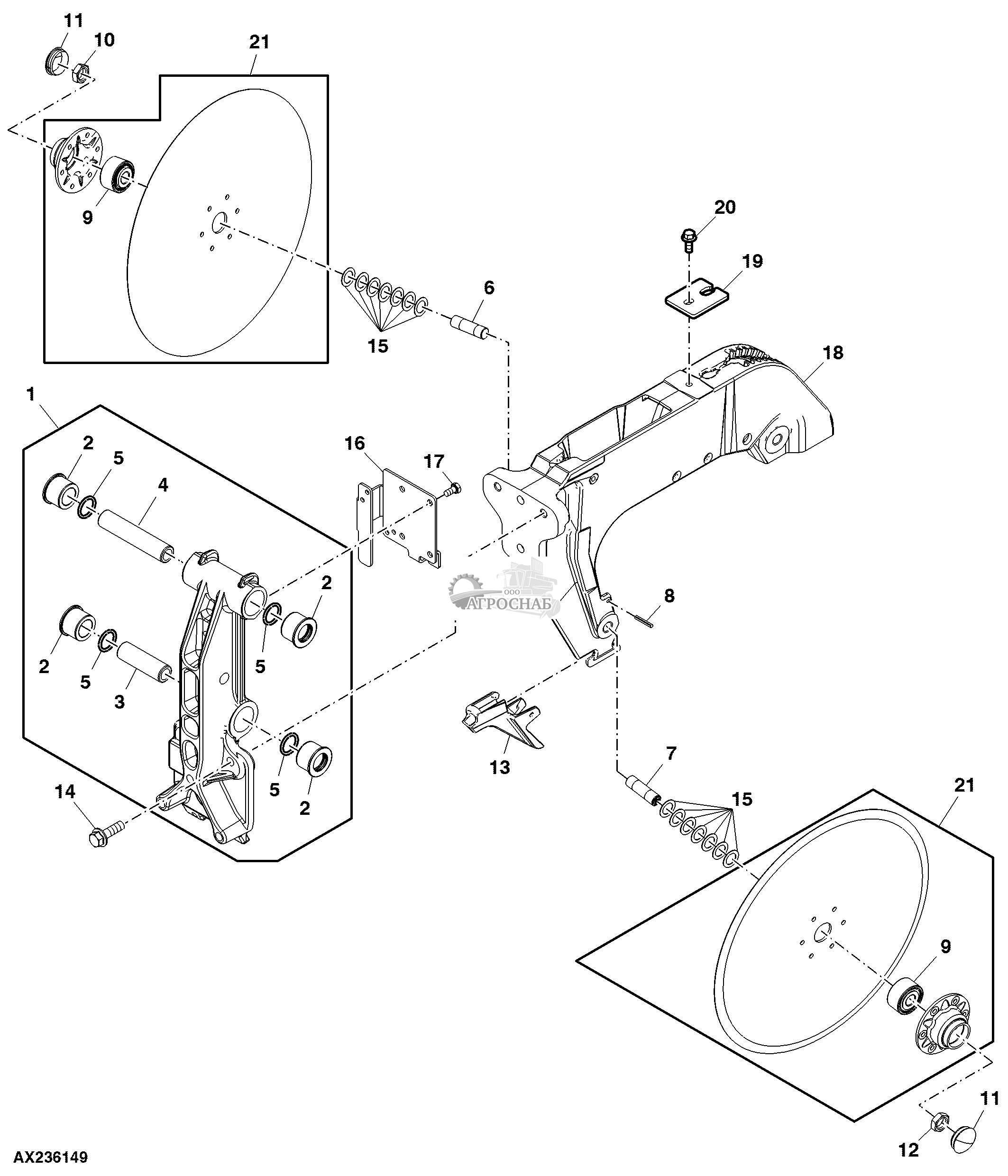

Shank, Twin Row(Две Строки Хвостовик )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
|---|---|---|---|---|---|---|---|
| 1 | AA72255 | Bracket | 1 | ||||
| 2 | A89244 | Bushing | 4 | ||||
| 3 | A89224 | Bushing | 1 | ||||
| 4 | A89225 | Bushing | 1 | ||||
| 5 | A4730R | O-Ring | 4 | ||||
| 6 | A78210 | Stud | 1 | Axle, Opener RH | |||
| 7 | A79254 | Stud | 1 | Axle, Opener LH | |||
| 8 | 34H284 | Spring Pin | 1 | 3/16" X 1-1/4" | |||
| 9 | AA59196 | Ball Bearing | 2 | ||||
| 10 | 14M7260 | Nut | 1 | M16 Thin Hex; RH | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 11 | A78218 | Plug | 2 | ||||
| 12 | 14M7382 | Nut | 1 | M16 Thread Hex; LH | |||
| 13 | A80203 | Guard | 1 | - | 720100 | ||
| A97107 | Guard | 1 | 720101 | - | |||
| 14 | 19M7791 | Bolt | 3 | M12 X 40 | |||
| 15 | J16160 | Shim | 14 | ||||
| 16 | A89434 | Bracket | 1 | ||||
| 17 | 19M7162 | Cap Screw | 2 | M8 X 16 | |||
| 18 | AA62767 | Shank | 1 | ||||
| 19 | A71965 | Plate | 1 | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 20 | 19M7785 | Screw | 1 | M10 X 25 | |||
| 21 | AA65248 | Disk | 2 | INCLUDES A78218 |
Parallel Arms, Twin Row(Ряд Параллельно Руки Две )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | A89244 | Bushing | 4 | |||
| 2 | A4730R | O-Ring | 4 | |||
| 3 | A89224 | Bushing | 2 | |||
| 4 | A88663 | Arm | 1 | Lower | ||
| 5 | A89357 | Arm | 1 | Upper | ||
| 6 | 14M7291 | Flange Nut | 4 | M16 | ||
| 7 | 19M9700 | Screw | 3 | M16 X 140 | ||
| 8 | 19M7847 | Screw | 1 | M16 X 180 | ||
| 9 | AA72254 | Bracket | 1 | Row Unit Front mount |

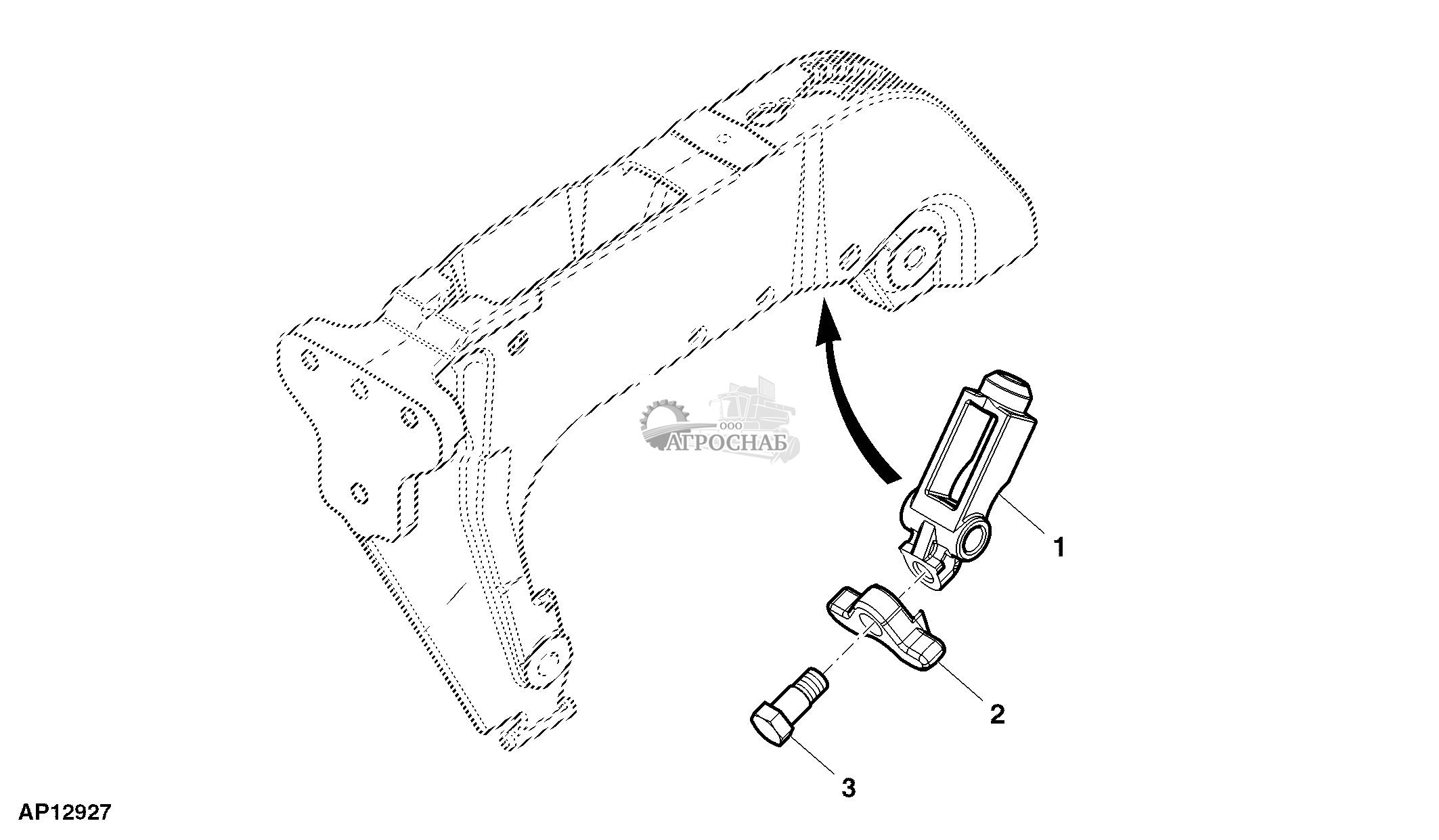

Depth Stop W/O Sensor, Walking(Ограничитель глубины Жо датчик ходьбе)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | A94705 | Stop | 1 | SUB FOR A90343 | ||
| 2 | A62609 | Rocker | 1 | |||
| 3 | A58670 | Screw | 1 |
Depth Stop W/O Sensor, Rigid(Глубина остановить Жо датчик жесткой)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | A90675 | Stop | 1 |

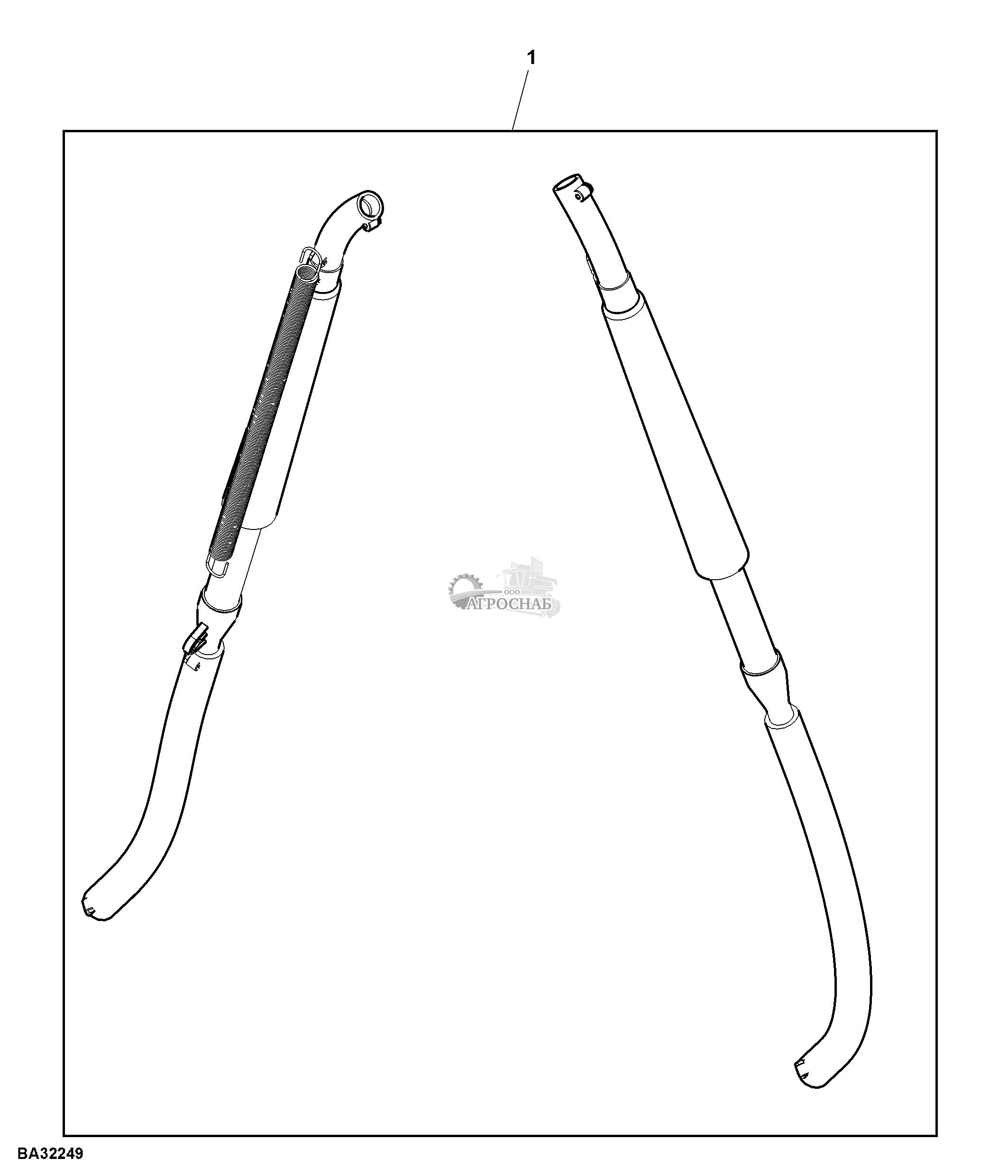

Attachment, Insecticide Delivery, Twin Row(Вложение Инсектицид Доставка Две Строки)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | BA32246 | Hose Kit | 1 |

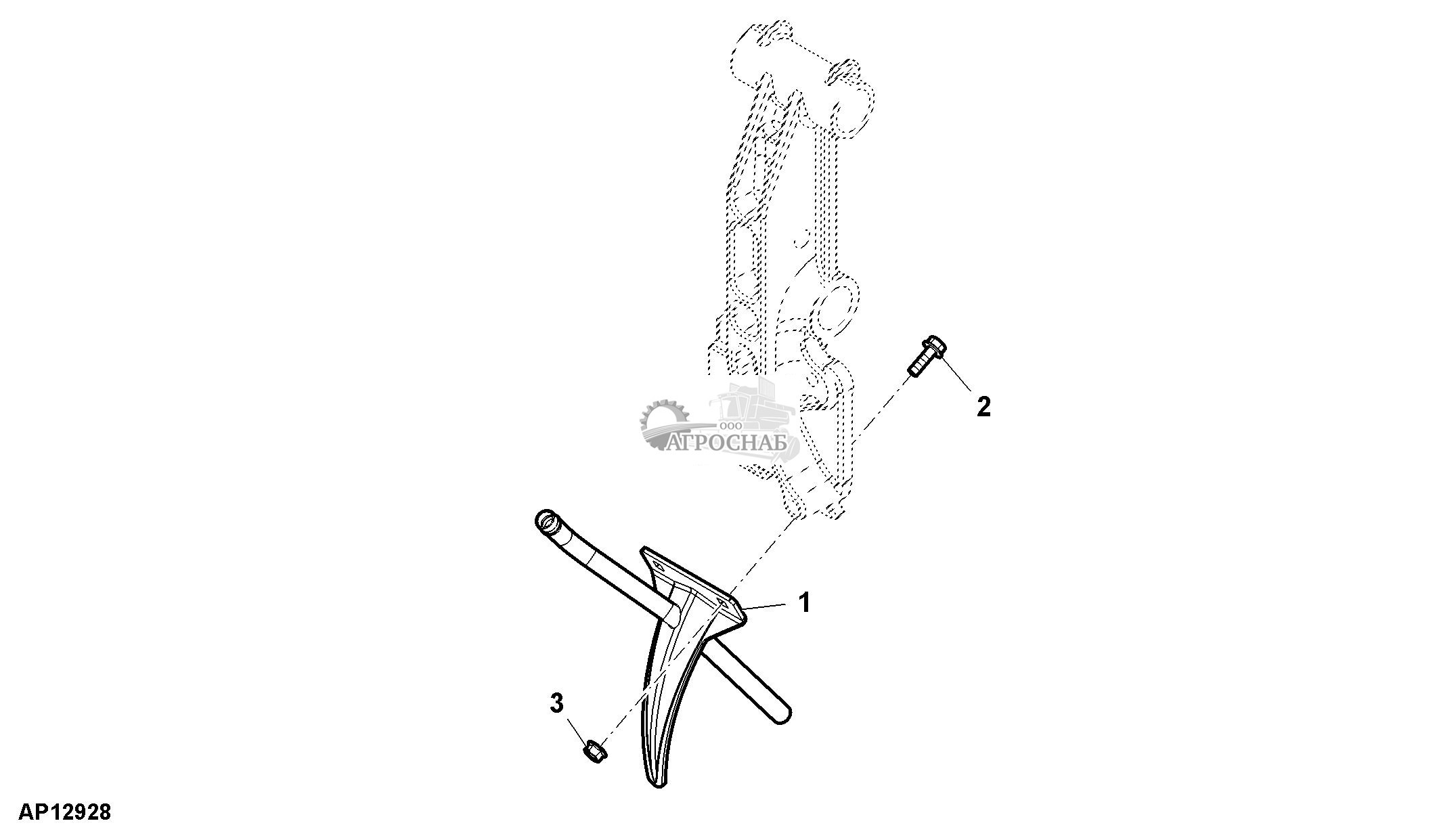

Insecticide Delivery, Twin Row(Доставка Инсектицидов Две Строки)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA76807 | Tube | 1 | |||
| 2 | 19M7867 | Screw | 2 | M8 X 25 | ||
| 3 | 14M7298 | Flange Nut | 2 | M8 |
Rear Support, Hopper(Задняя Опора Бункера)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA76349 | Bracket | 1 | Support, Rear Hopper | ||
| 2 | A91008 | Groove Pin | 1 | |||
| 3 | N105572 | Snap Ring | 1 | |||
| 4 | 19M7785 | Screw | 1 | M10 X 25 |

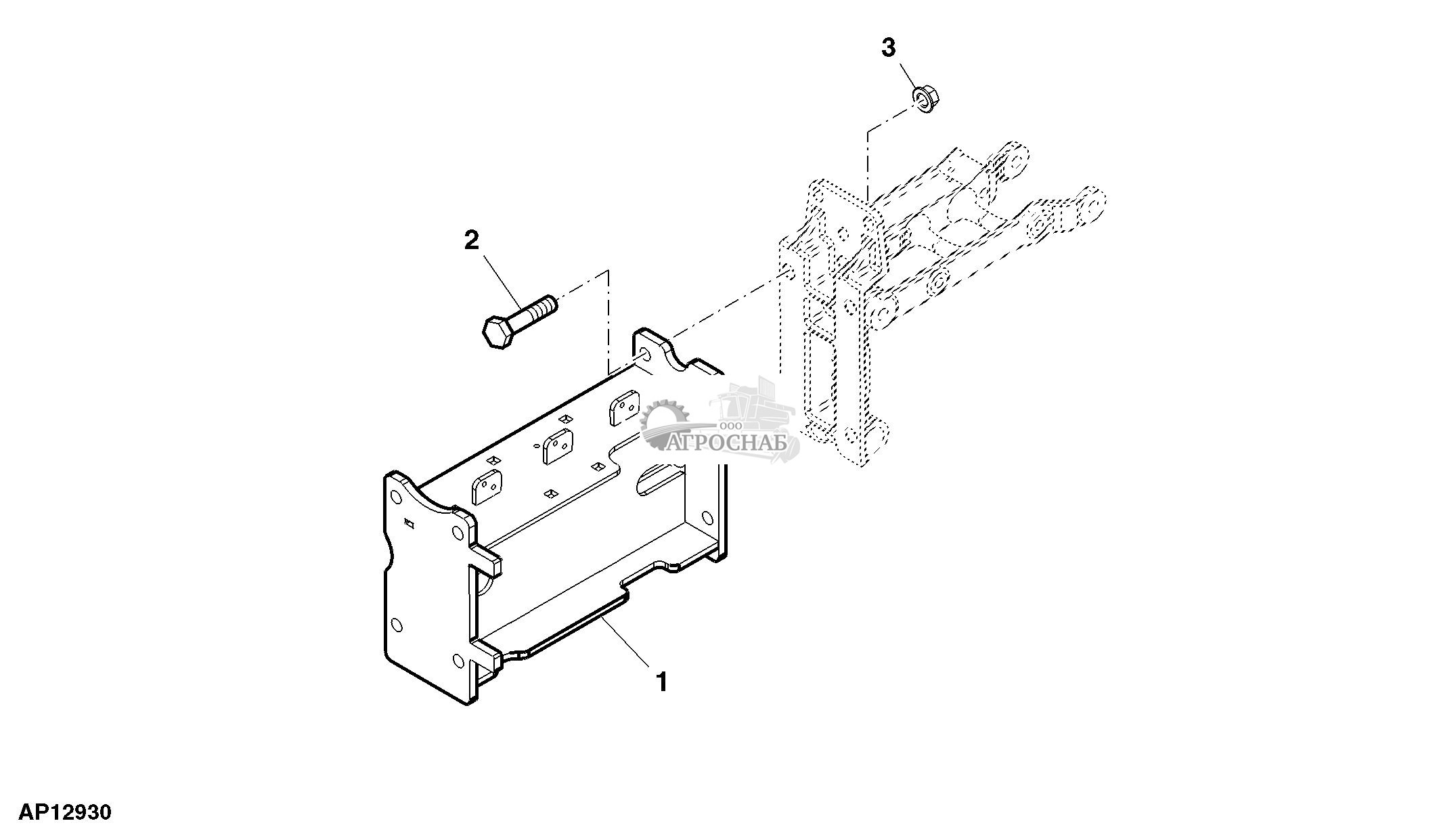

Setback Bracket(Неудача Кронштейн)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA78377 | Frame | 1 | |||
| 2 | 19M7409 | Cap Screw | 4 | M16 X 50 | ||
| 3 | 14M7291 | Flange Nut | 4 | M16 |

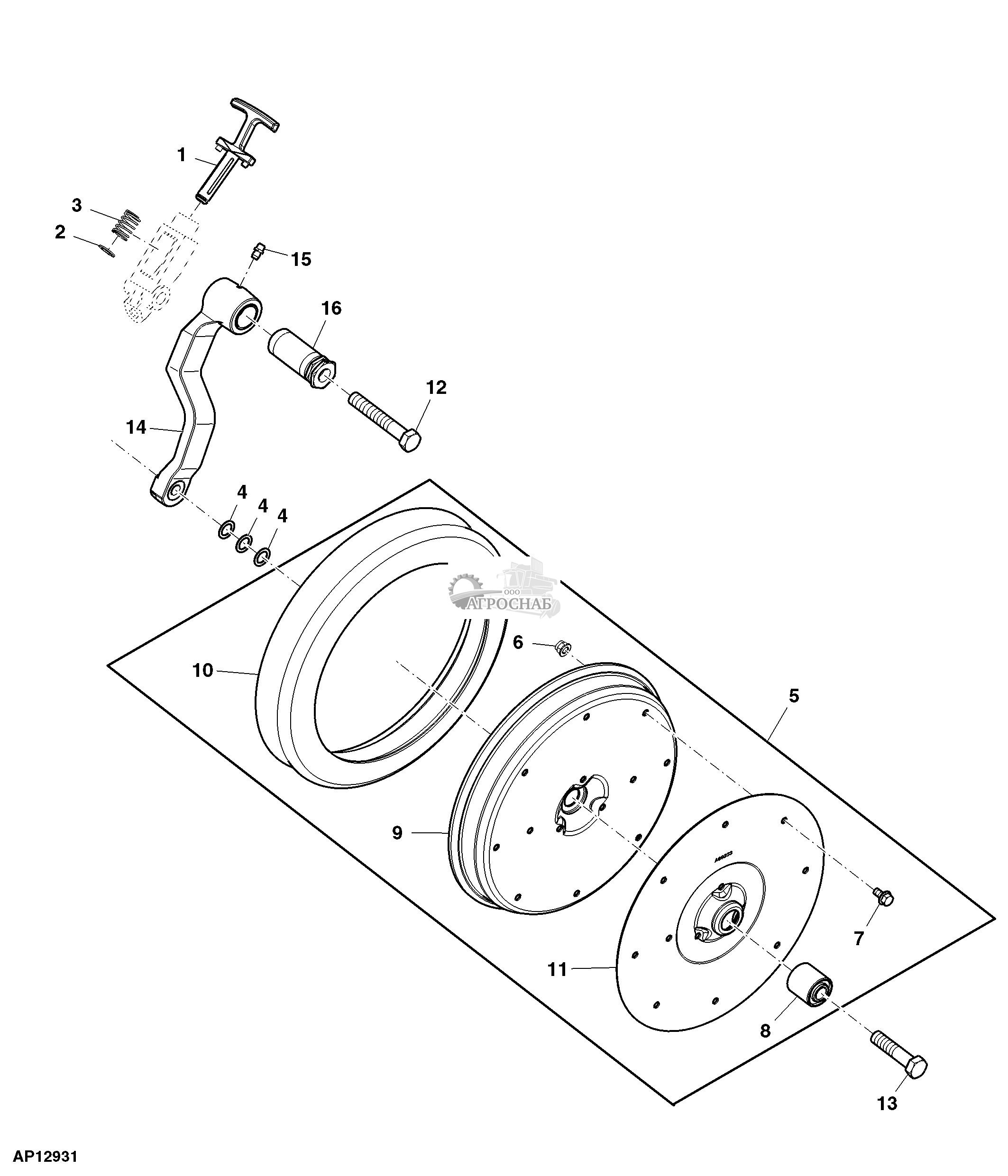

Walking Gauge Wheels(Ходьба Датчик Колеса)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | A90344 | Handle | 1 | |||
| 2 | B14203 | Snap Ring | 1 | |||
| 3 | A90676 | Compression Spring | 1 | |||
| 4 | N282054 | Washer | 6 | |||
| 5 | AA71530 | Wheel | 2 | |||
| 6 | 14M7396 | Lock Nut | 11 | M8 | ||
| 7 | 19M7865 | Screw | 11 | M8 X 16 | ||
| 8 | AN212132 | Ball Bearing | 1 | |||
| 9 | A85104 | Wheel | 1 | |||
| 10 | A89232 | Tire | 1 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | A89233 | Wheel | 1 | |||
| 12 | 19M8020 | Cap Screw | 2 | M16 X 100 | ||
| 13 | 19M7719 | Cap Screw | 2 | M16 X 70 | ||
| 14 | A79648 | Arm | 1 | |||
| 15 | JD7844 | Lubrication Fitting | 1 | |||
| 16 | A57058 | Self-Aligning Bushing | 1 |

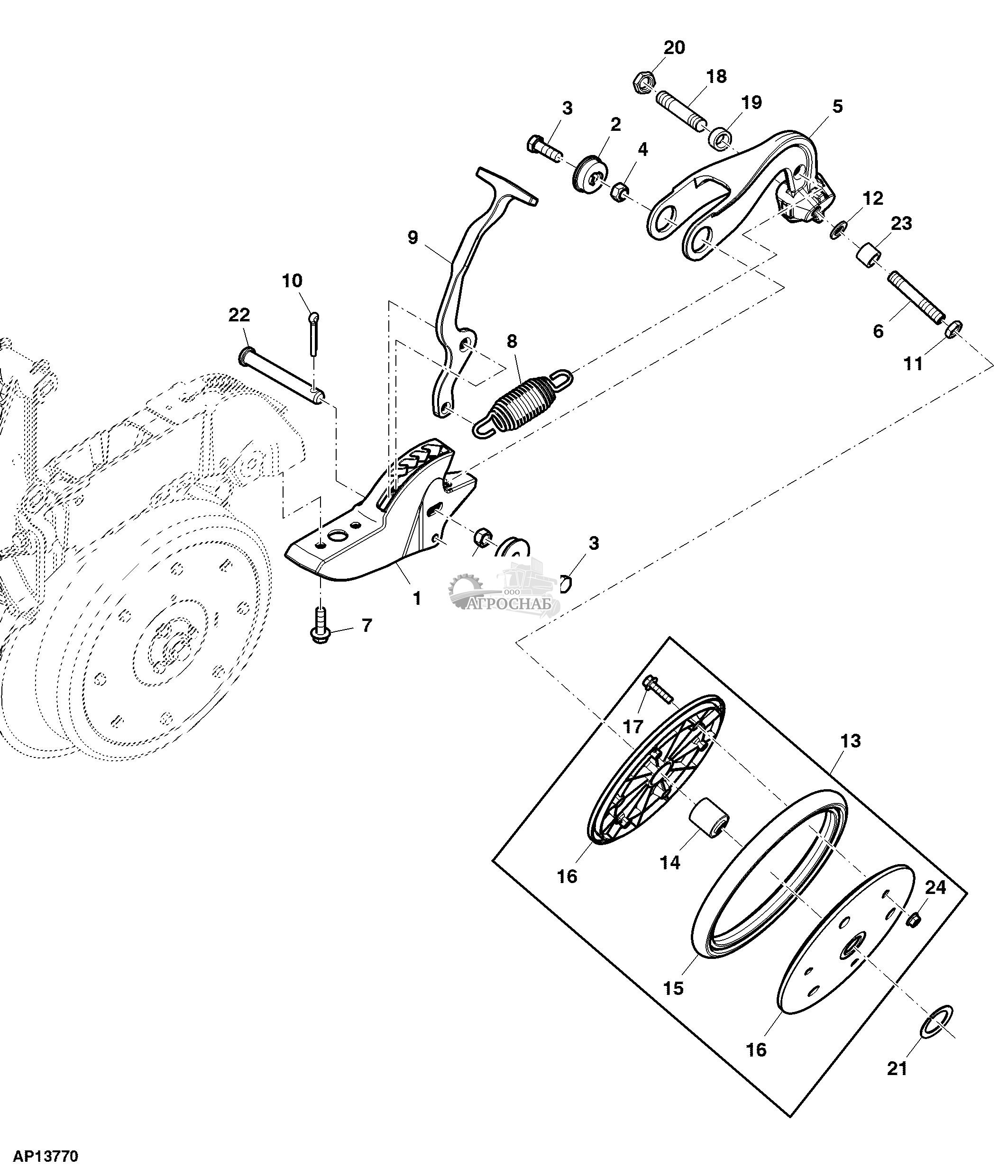

Supports / Handle, Closing Wheel(Поддерживает Ручка Закрытия Колесо)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
|---|---|---|---|---|---|---|---|
| 1 | A88667 | Bracket | 1 | ||||
| 2 | A55888 | Bushing | 2 | ||||
| 3 | 19M7790 | Screw | 2 | M12 X 35 | |||
| 4 | A31867 | Lock Nut | 2 | ||||
| 5 | A88666 | Bracket | 1 | ||||
| 6 | A89396 | Axle | 1 | ||||
| 7 | 19M7789 | Screw | 2 | M12 X 30 | |||
| 8 | A74643 | Extension Spring | 1 | SUB FOR A91066 | |||
| 9 | A89461 | Handle | 1 | - | 750100 | ||
| A95196 | Handle | 1 | 750101 | - | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 10 | 11M7059 | Cotter Pin | 1 | 3.200 X 20 mm | |||
| 11 | 14M7382 | Nut | 1 | M16 | |||
| 12 | 24M7053 | Washer | 1 | 17 X 30 X 3 mm | |||
| 13 | AA39968 | Wheel | 2 | Rubber, Closing Wheel | |||
| AA73763 | Wheel | 2 | Includes AN212132 and L1 610N; Cast, Closing Wheel | ||||
| 14 | AN212132 | Ball Bearing | 1 | ||||
| 15 | A22325 | Tire | 1 | ||||
| 16 | A56566 | Wheel | 2 | ||||
| 17 | 19M7863 | Screw | 6 | M6 X 25 | |||
| 18 | A89394 | Axle | 1 | RH, Short | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| A89395 | Axle | 1 | RH, Long | ||||
| 19 | A52556 | Spacer | 1 | ||||
| 20 | 14M7260 | Nut | 1 | M16 | |||
| 21 | L1610N | Snap Ring | 2 | ||||
| 22 | H178756 | Pin Fastener | 1 | ||||
| 23 | E88173 | Bushing | 1 | ||||
| 24 | 14M7397 | Lock Nut | 6 | M6 |
Closing Wheel, RH Wheel Hardware, RH Row Unit(Заделывающее колесо резус колеса аппаратные резус строки блока)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | 14M7296 | Flange Nut | 1 | M10 | ||
| 2 | A89395 | Axle | 1 |
Closing Wheel, RH Wheel Hardware, LH Row Unit(Заделывающее колесо резус колеса аппаратные ЛГ строки блока)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | A52556 | Spacer | 1 | 17.480 X 25.400 X 11 mm (11/16" X 1" X 0.433") | ||
| 2 | A89394 | Axle | 1 | |||
| 3 | 14M7296 | Flange Nut | 1 | M10 |
Seed Tube and Sensor(Семян трубку и датчик)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA67779 | Tube | 1 | |||
| 2 | A84774 | Seal | 1 | |||
| 3 | AA61909 | Sensor | 1 | Red LED | ||
| 4 | AA61908 | Sensor | 1 | Yellow LED | ||
| 5 | A56786 | Tube | 1 | Seed Tube Long Curved W/ Hole | ||
| 6 | H77698 | Tie Band | 2 |

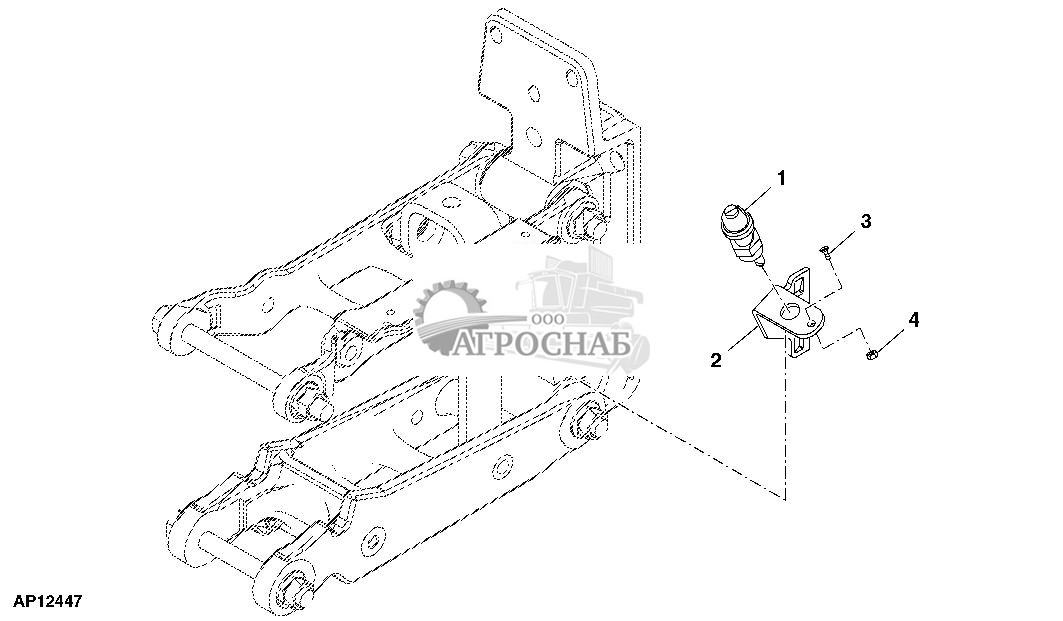

Parallel Arm Height Switch(Параллельный Высота Рукоятки Переключателя)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AT157547 | Switch | 1 | |||
| 2 | A89502 | Bracket | 1 | |||
| 3 | 03M7191 | Bolt | 2 | M10 X 25 | ||
| 4 | 14M7274 | Nut | 2 | M10 |
Insecticide Hopper Support(Поддержка Инсектицид Хоппер )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA76957 | Frame | 1 | |||
| 2 | 03M7083 | Bolt | 4 | M12 X 35 | ||
| 3 | 14M7299 | Flange Nut | 4 | M12 | ||
| 4 | 14M7396 | Lock Nut | 2 | M8 | ||
| 5 | A37497 | Funnel | 2 | |||
| 6 | 37H137 | Screw | 4 | 0.190" X 5/8" |
Attachment, Insecticide Delivery Hose(Вложение Инсектицид Шланг Доставка )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | BA32249 | Hose Kit | 1 |

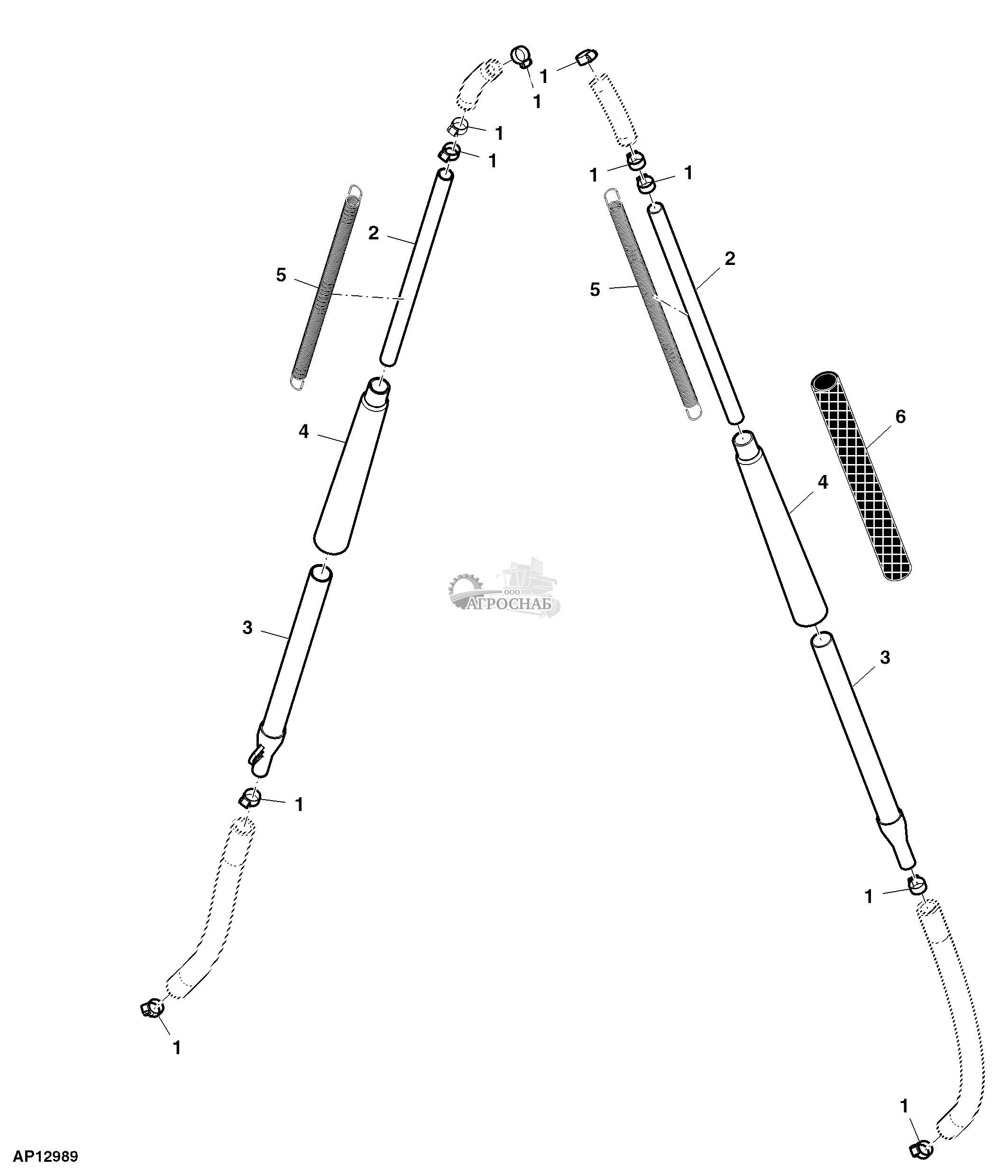

Insecticide Delivery(Доставка Инсектицидов )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AR77962 | Hose Clamp | 10 | |||
| AA29204 | Hose Clamp | 10 | ||||
| 2 | A91350 | Hose | 2 | |||
| 3 | AA77638 | Hose | 2 | |||
| 4 | A91353 | Hose | 2 | |||
| 5 | A91709 | Spring | 2 | |||
| 6 | A91731 | Hose Guard | 1 | Hose LH |
Attachment, Insecticide Hopper(Вложение Инсектицид Хоппер)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | BA32247 | Hopper | 1 |

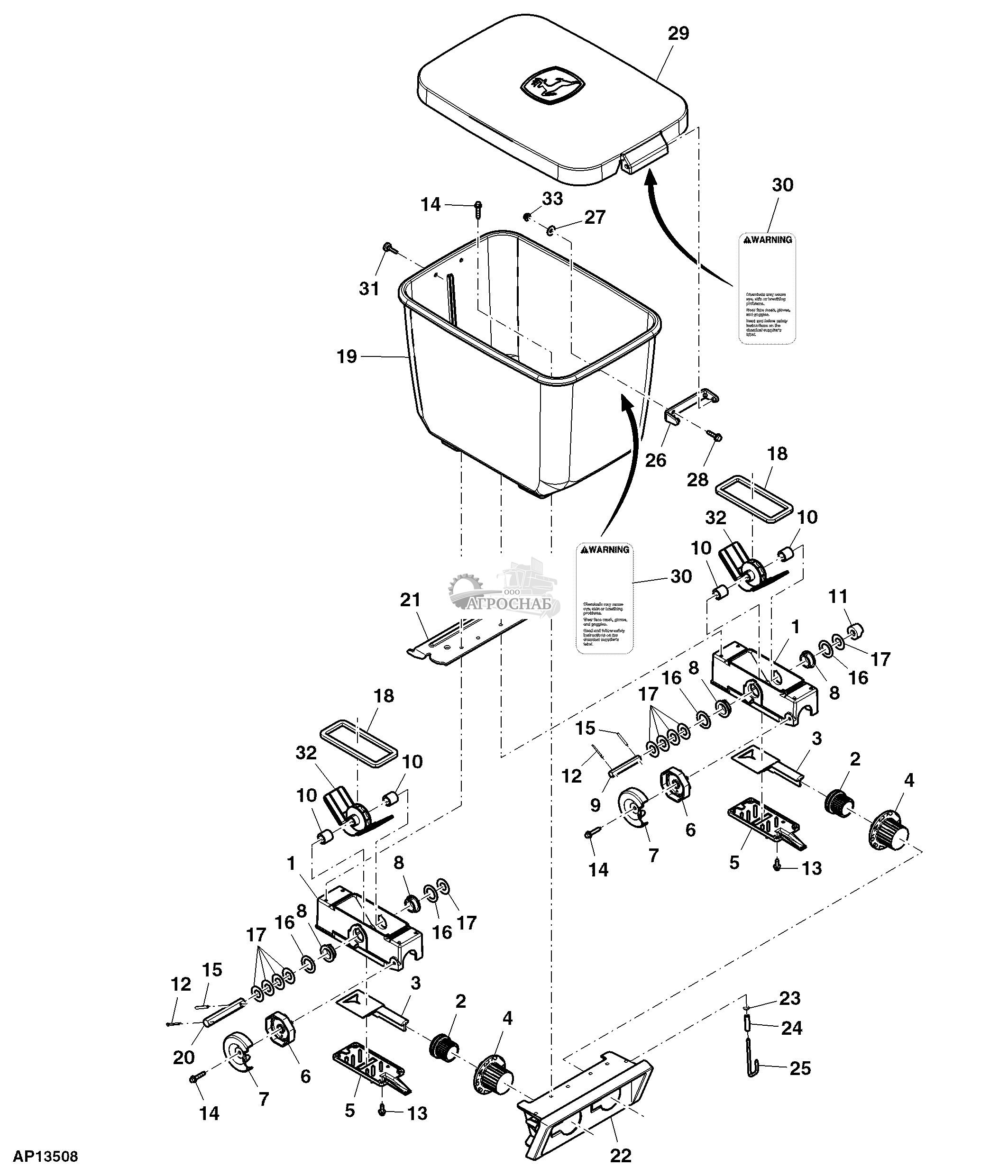

Insecticide Hopper, Twin Row(Инсектицид Хоппер Две Строки)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | A50861 | Housing | 2 | |||
| 2 | A48340 | Nut | 2 | |||
| 3 | A48338 | Gate | 2 | |||
| 4 | A48341 | Knob | 2 | |||
| 5 | A48339 | Cover | 2 | |||
| 6 | A48342 | Follower | 2 | |||
| 7 | A48343 | Cover | 2 | |||
| 8 | A50867 | Bushing | 4 | |||
| 9 | A53092 | Bar | 1 | |||
| 10 | A52401 | Bushing | 5 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | A82601 | Bushing | 1 | |||
| 12 | 11M7015 | Cotter Pin | 2 | 3.200 X 25 mm | ||
| 13 | 37M7090 | Screw | 8 | M6 X 16 | ||
| 14 | 37M7104 | Screw | 10 | M6 X 30 | ||
| 15 | 34H268 | Spring Pin | 2 | 5/32" X 1-1/4" | ||
| 16 | 24H1660 | Washer | 4 | 57/64" X 1-3/8" X 0.060" | ||
| 17 | A64397 | Washer | 7 | |||
| 18 | A48368 | Seal | 2 | |||
| 19 | A54205 | Hopper | 1 | |||
| 20 | A50875 | Bar | 1 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 21 | A48065 | Support | 1 | |||
| 22 | A52441 | Support | 1 | |||
| 23 | R72654 | Snap Ring | 1 | |||
| 24 | A49740 | Compression Spring | 1 | |||
| 25 | A49661 | Pin | 1 | |||
| 26 | A48969 | Hinge | 1 | |||
| 27 | 24H1646 | Washer | 2 | 17/64" X 3/4" X 0.060" | ||
| 28 | 19M7863 | Screw | 2 | M6 X 25 | ||
| 29 | AA53856 | Cover | 1 | INCLUDES (1) A54616 | ||
| 30 | A54616 | Safety Sign | 2 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 31 | A53162 | Plug | 2 | |||
| 32 | AA41608 | Rotor Kit | 2 | |||
| 33 | 14M7397 | Lock Nut | 2 | M6 |

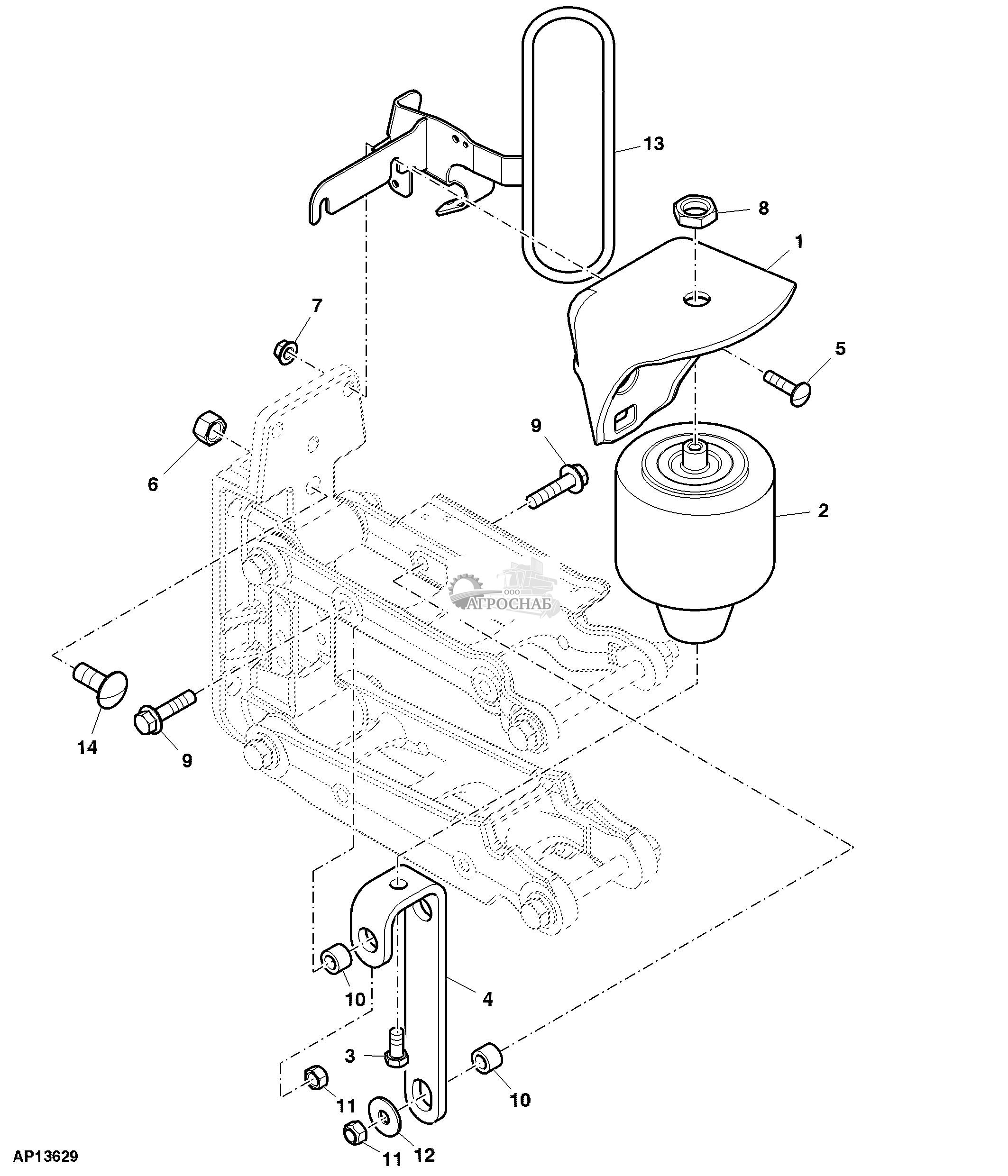

Absorber, Pneumatic Downforce, Twin Row(Амортизатор Пневматический Прижимной Силы Две Строки)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | A89297 | Bracket | 1 | |||
| 2 | AA71437 | Absorber | 1 | |||
| 3 | 19M7872 | Cap Screw | 1 | M12 X 25 | ||
| 4 | A89211 | Bracket | 1 | |||
| 5 | 03M7194 | Bolt | 2 | M10 X 40 | ||
| 6 | 14M7276 | Nut | 1 | M16 | ||
| 7 | 14M7296 | Flange Nut | 2 | M10 | ||
| 8 | 14M7747 | Nut | 1 | M22 | ||
| 9 | 19M7814 | Screw | 3 | M12 X 50 | ||
| 10 | N217284 | Spacer | 3 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | A31867 | Lock Nut | 3 | |||
| 12 | 24M7180 | Washer | 1 | 13 X 37 X 3 mm | ||
| 13 | AA74220 | Bracket | 1 | |||
| 14 | 03M7207 | Bolt | 1 | M16 X 50 |
Shield Double Disk(Щит Двойной Диск)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | A48879 | Shield | 1 | |||
| 2 | 03M7185 | Bolt | 2 | M8 X 25 | ||
| 3 | 14M7298 | Flange Nut | 2 | M8 |

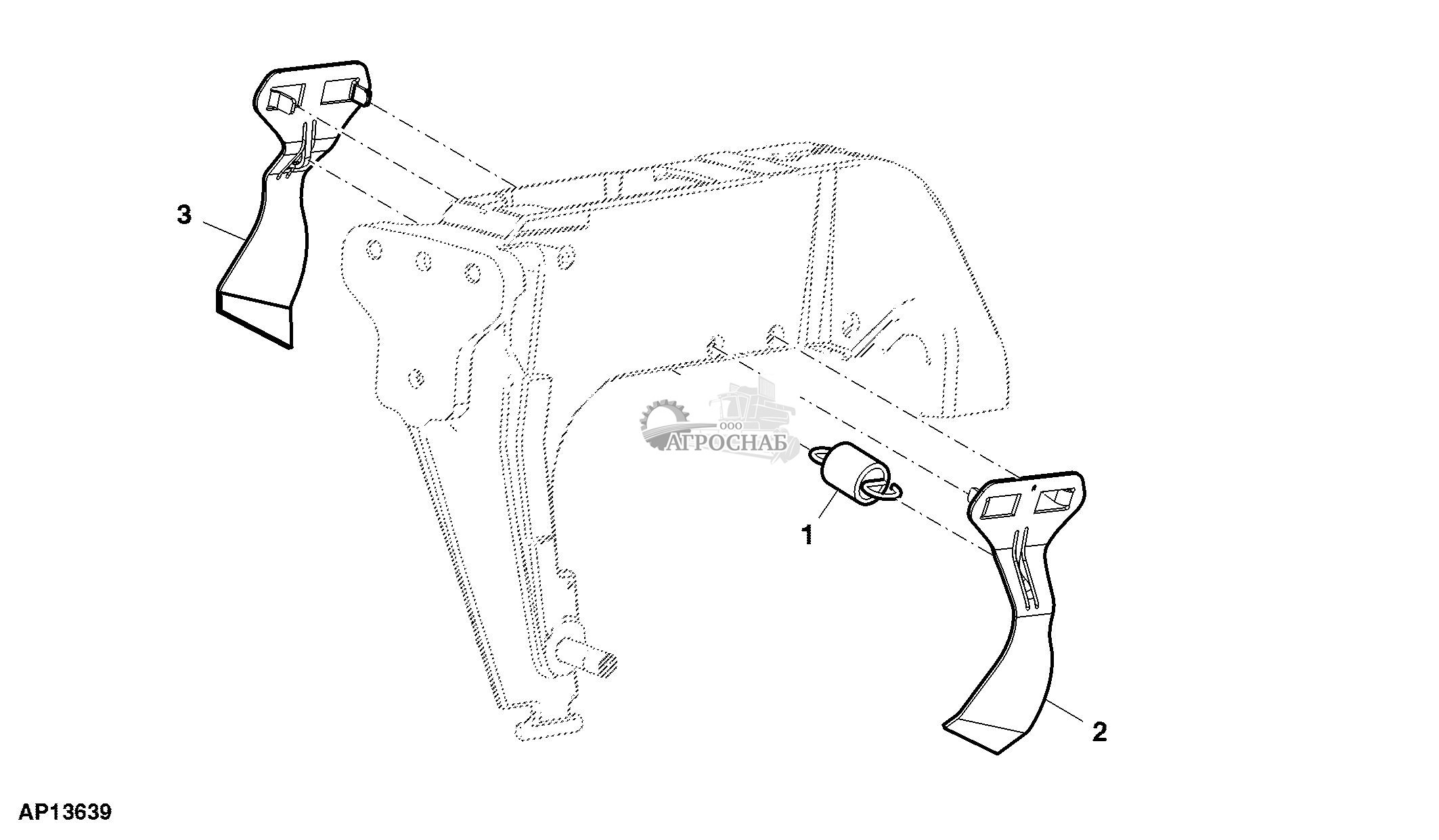

Single Piece Scraper(Один Кусок Скребок)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | A50047 | Spring | 1 | |||
| 2 | A88091 | Scraper | 1 | RH | ||
| 3 | A88092 | Scraper | 1 | LH |
Scrapers Heavy Duty(Скребки Тяжелых)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | A41116 | Spring | 1 | RH Torsion | ||
| A41117 | Spring | 1 | LH Torsion | |||
| 2A | A62182 | Blade | 2 | ORDER AA64034 | ||
| 2B | AA64034 | Scraper Kit | 1 | Includes LH and RH Scraper Blades | ||
| 3 | A64447 | Pin Fastener | 2 | |||
| 4 | R63684 | Sleeve | 2 | |||
| 5 | 11M7059 | Cotter Pin | 4 | 3.200 X 20 mm | ||
| 6 | 24H1302 | Washer | 2 | 13/32" X 11/16" X 0.035" | ||
| 7 | 03M7186 | Bolt | 2 | M8 X 30 | ||
| 8 | 14M7298 | Flange Nut | 2 | M8 | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 9 | AA46903 | Scraper | 1 |
Brush, Flat Seed-Disk-4R(Кисть Плоская SeedDiskR)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | A78723 | Brush | 4 |
Knockout Wheel(Колеса Нокаут )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA37348 | Knocker | 12 | Includes All Parts Marked (A), (For Sweet Corn and PRO MAX 40) | ||
| AH129125 | Knocker | 1 | Includes All Parts Marke d (B), For Sorghum Disks | |||
| 2 | A52389 | Knocker | 1 | (A), (For Sweet Corn and PRO MAX 40) | ||
| H136448 | Knocker | 1 | (B), For Sorghum Disks | |||
| 3 | H136446 | Support | 1 | (A), (B) | ||
| 4 | H136447 | Arm | 1 | (A), (B) | ||
| 5 | H136449 | Pin Fastener | 1 | (A), (B) | ||
| 6 | M61287 | Compression Spring | 1 | (A), (B) |
Seed Disk(Семян Диск)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | H136092 | Seed Plate | 2 | 50 Cells; Large Edible Beans , Spanish and Runner Peanuts | ||
| H138722 | Seed Plate | 2 | (2 Per Carton), 46 Cells; Virginia Peanuts |

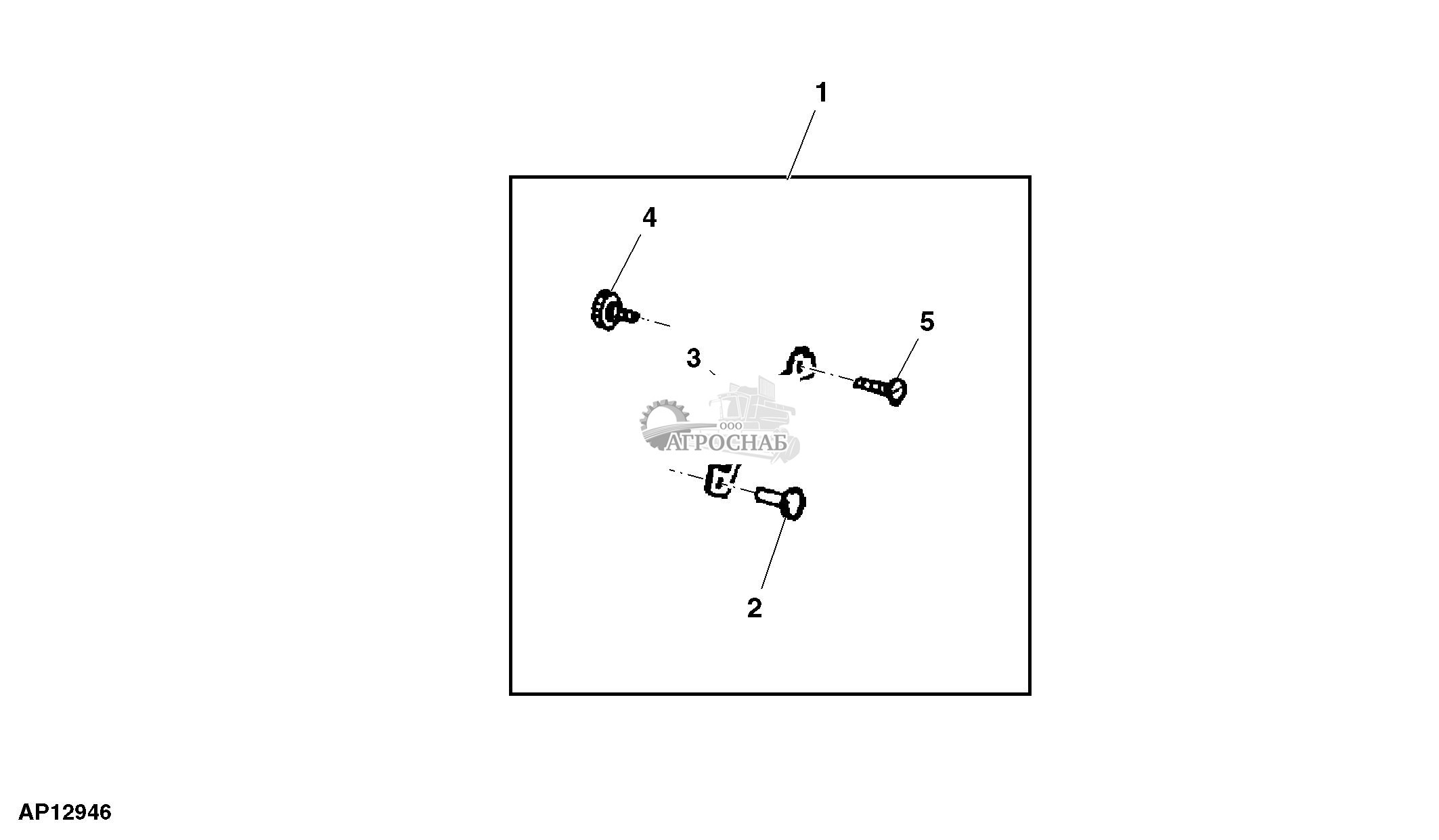

Double Eliminator, Twin Row(Двойной Элиминатор Две Строки)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA61046 | Strap Kit | 1 | |||
| 2 | A48970 | Dual Lock Fastener | 4 | |||
| 3 | A52886 | Adjusting Strap | 2 | |||
| 4 | A52889 | Cam | 2 | |||
| 5 | 21H1396 | Screw | 2 | 0.112" X 3/8" |

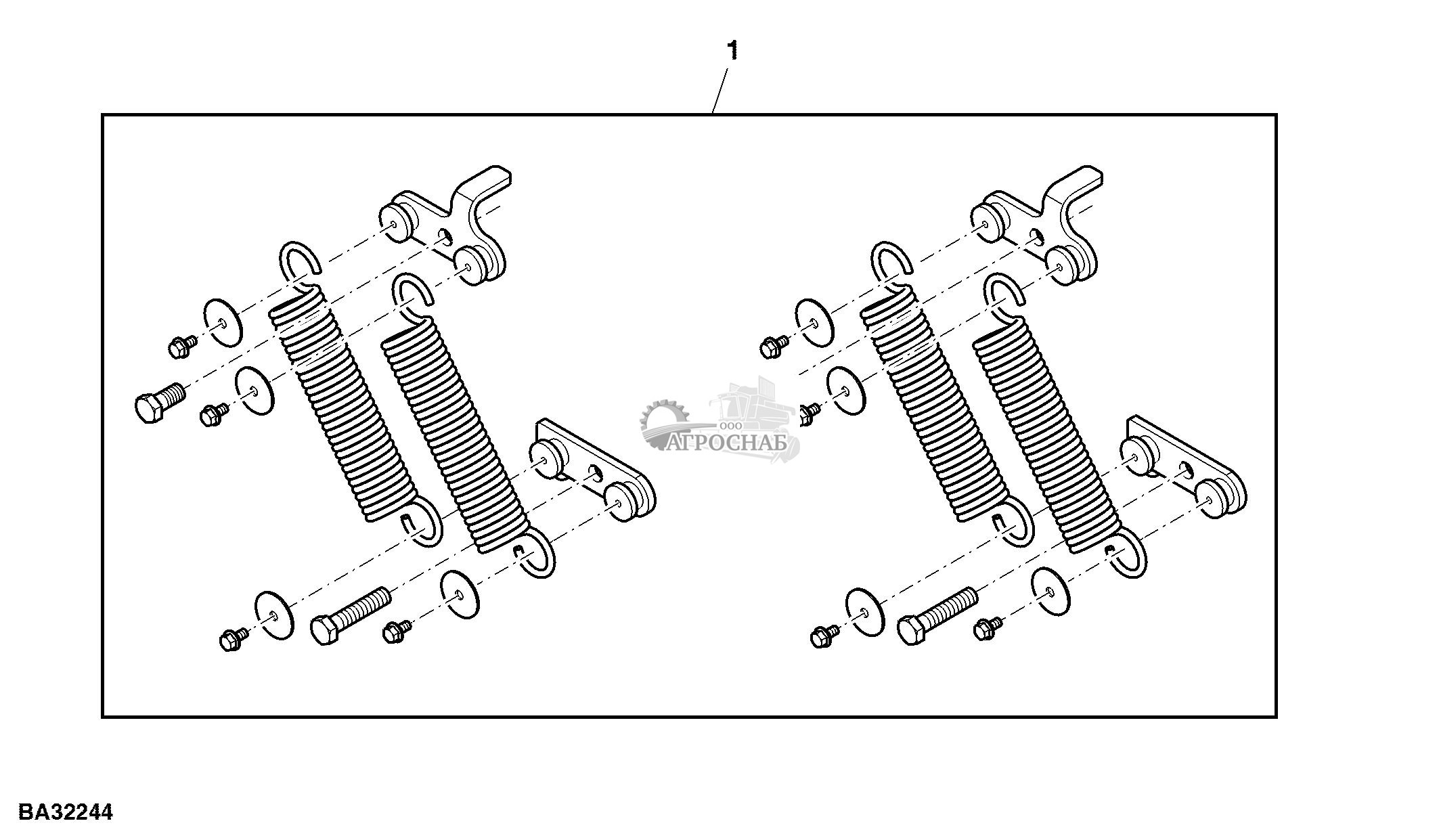

Attachment, Dual Upforce Springs(Вложение Двойной Upforce Пружин)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | BA32244 | Spring Kit | 1 |
Dual Upforce Spring(Двойной Upforce Весна)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA77955 | Plate | 2 | Top | ||
| 2 | AA77956 | Plate | 2 | Bottom | ||
| 3 | A43609 | Spring | 4 | |||
| 4 | 19M7362 | Cap Screw | 2 | M12 X 55 | ||
| 5 | 19M7872 | Cap Screw | 2 | M12 X 25 | ||
| 6 | 24H1695 | Washer | 8 | 9/32" X 1-3/8" X 0.065" | ||
| 7 | 19M7774 | Screw | 8 | M6 X 12 |
